Plaza LEVEL

Introduction

The Toll Plaza Level is a group of sub systems that operate in the Toll Plazas. It includes all the Hardware and Software necessary to control the exploitation of toll lanes and obtain all the relevant information. It also has the necessary elements for collection control.

It includes all the processes relative to toll collection performed in the Toll Plaza

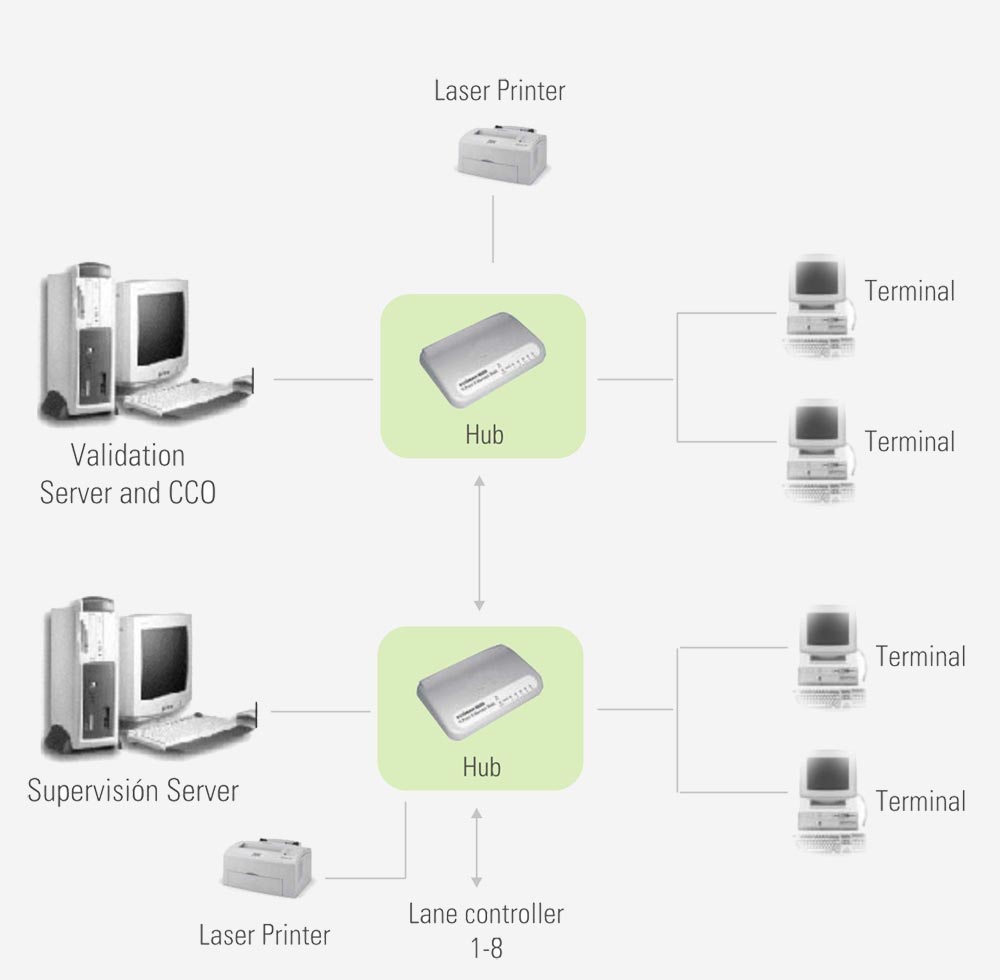

Toll Plaza Level Architecture

system-3toll-place1

Description of the Toll Plaza Hardware

The Toll Plaza level contains all the necessary Hardware to control the exploitation of the toll lanes and obtain all the relevant information. It also includes the necessary elements for collection control, and even for maintenance and diagnosis of the lanes hardware and software.

The hardware of a typical Toll Plaza includes:
A server standard device, placed in the Toll Plaza manages all the data relative to it.
Equipment(server) for Toll Plaza Supervision (SSV)
Equipment(server) for Validation and CCO
Equipment (PC) for SAP
Equipment(PC) for Validation
Laser Printer

3.1 Equipment Technical Specifications

Supervision Server (SSV)

  • 1Ghz Pentium III
  • 64 Mb RAM Memory
  • 512 KB Cache Memory
  • 3,5″ diskette unit
  • 3 Com 10/100 Network plate
  • Spanish keyboard and a two-button mouse
  • 17″ Ultra VGA Monitor
  • 8GB internal DAT

Validation Server and CCO

  • 1Ghz Pentium III
  • 64 Mb RAM Memory
  • 512 KB Cache Memory
  • 3,5″ diskette unit
  • 3 Com 10/100 Network plate
  • 1 10 GB hard disk
  • Spanish keyboard and a two-button mouse
  • 15″ Ultra VGA Monitor
  • 8GB internal DAT

SAP terminal

  • 1Ghz Pentium III
  • 64 Mb RAM Memory
  • 512 KB Cache Memory
  • 3,5″ diskette unit
  • 3 Com 10/100 Network plate
  • 1 10 GB hard disk
  • Spanish keyboard and a two-button mouse
  • 15″ Ultra VGA Monitor

Laser printer

  • Laser printerblack ink
  • 10 sheets per minute print
  • Network printer

Toll Plaza Level Software

The Software runs under Windows 95/98 and Windows NT, except for the Toll Plaza server that only runs under Windows NT Server or superior to it.

The Software as well as the Hardware has Y2K compatibility for the integral operation of the system.

Components of the Toll Plaza Software

The Toll Plaza Level -as regards the software- has following components:
-Toll Plaza Server and data base
-Toll Plaza settlement client
-Toll Plaza supervision client
-Lane Maintenance Client

4.1 Toll Plaza Server

The Toll Plaza Server is the main element of the Toll Plaza. It has many “Clients” such as: its monitor, Plaza Manager, Settlement Client and Lane Maintenance Client. It should also be added to this list the corresponding Lanes of the Plaza. The server creates a dedicated process to each client to be connected.

The principal functions of the Toll Plaza Server are the following:
– To manage the reception of messages coming from the lanes.
– To manage the delivery of orders and messages to the lanes.
– To control Shifts and Sub-shifts.
– To keep the lanes status updated.
– To generate files of corresponding data automatically.
– To generate a back up file of communication with the lanes.

4.2 Clients of Toll Plaza Level

4.2.1 Toll Plaza supervision client

The Toll Plaza Manager is the application that makes the Toll Plaza monitoring. Its principal functions are:
– To get connected to a Toll Plaza
– Toll Plaza Level Monitoring
– Telecommands
– Reports
– Statistics

4.2.1.1 Getting connected to a Toll Plaza

It allows to get connected to a Toll Plaza as long as the user has access to it. Once the Toll Plaza is selected, the client allows viewing a detailed graphic of it.

4.2.1.2 Toll Plaza Lane Monitoring

This allows – on the detailed Toll Plaza graphic- to perform diverse operations that depend on the exploitation status of the lane. Besides, it can see the information relative to shifts, collection, incidents, etc.

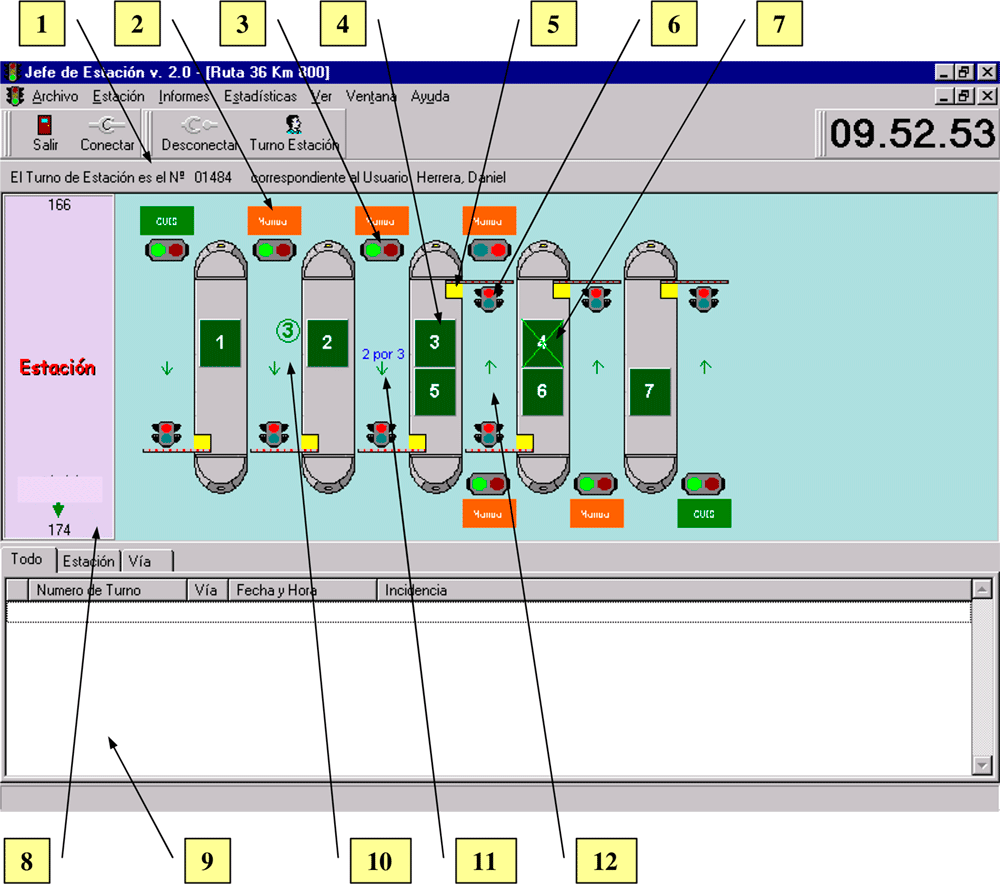

4.2.1.2.1 Toll Plaza Graphic Representation

The Toll Plaza allows you to monitor and command lane devices in a remote way. The appearance of the Toll Plaza is the following:

system-3toll-place2

References:
1. Indicator bar of the present shift and name of the working supervisor.
2. Marquee Notices. With this indicator it is possible to see the lane opening mode (Manual, Manual-AVI)
3. Marquee traffic lights. This indicator shows the marquee traffic light status. (red or green)
4. Lanes
5. Barriers. This indicator visualizes the barrier status. (High or Low)
6. Passage Traffic light. This indicator shows the marquee traffic light status. (red or green)
7. Online/offline Lane Indicator (if the lane were offline i appears crossed out with an X).
8. Toll Plaza. This chart represents the toll plaza. Here you can see the way and number of vehicles that arrive in ascendant or descendant way in the past hour.
9. Incident visor. In this visor all the lane and Toll Plaza incidents taking pace along the day are listed. If you want to see this listing go to item 5.2 Incident listings.
10. Tabulation. It indicates the category that the boot operator has tabulated.
11. DAC Discrepancy. This indicator shows the Toll Plaza supervisor that the vehicle that a¡has just left the lane belonged to a different category than the one the booth operator categorized.
12. Lane Circulation Way

Note: The number of Toll Lanes and their characteristics will depend on the Toll Plaza we are connected to.

Principal actions that can be performed on this screen:

– Lane status and devices monitoring.
– Remote Opening of a lane, only AVI.
– Lane or lane shift closing independently to its operation mode.
– Message delivery to the lanes operators.
– Visualization of the lanes’ properties.
– Remote operation of Lane devices (Marquee Traffic Light, Barrier and Alarm)
– View of incidents occurred in the different lanes as well as in the Toll Plaza

Note: The remote device operation will be performed only by te Toll Plaza supervisor working at that moment.

4.2.1.3 Telecommands

The Toll Plaza manager allows to send the Opening and closing lane and the closing Shift telecommands. These are particularly useful for the AVI mode lanes operation.

4.2.1.4 Reports

It will be possible to send reports related to the Toll Plaza traffic, as well as reports relevant to lanes’ incidents.
– Traffic by category
– Time lapse traffic
– Incidents between dates
(Examples in Annex Reports)

4.2.1.5 Statistics

In Statistics, the different traffic matrixes grouped by categories, payment method and free of payment modes will be visualized. (Examples in Annex Reports)

4.2.2 Toll Plaza Settlement Client

The Toll Plaza Closing Balance client is the software component in charge of comparing the collection declared by the booth operators with the one detected by the system through the lanes transits information. It allows the booth operator to set ho may units of each denomination, as well as of other complementary Closing Balance details such as bag number and seal, number of documents, cash change, etc he has.

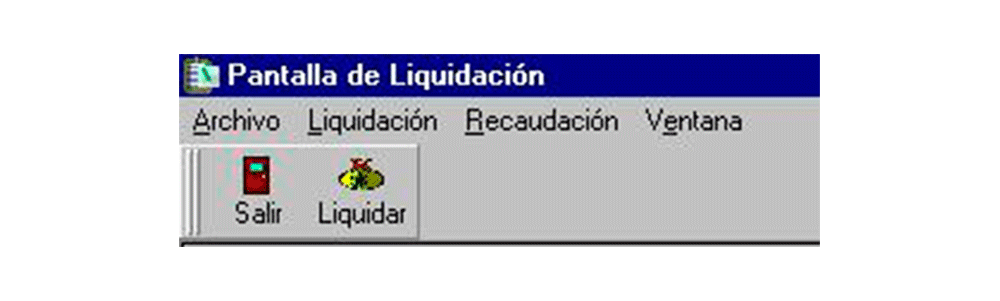

Principal Menu of the Toll Plaza Settlement client

system-3toll-place3

Functions

– Closing Balance of Lanes’ shifts operations
– Rendering and shift handing to the Collecting Company.
-Re-Closing Balance of Shifts.
– Reports’ printing.

system-3toll-place4

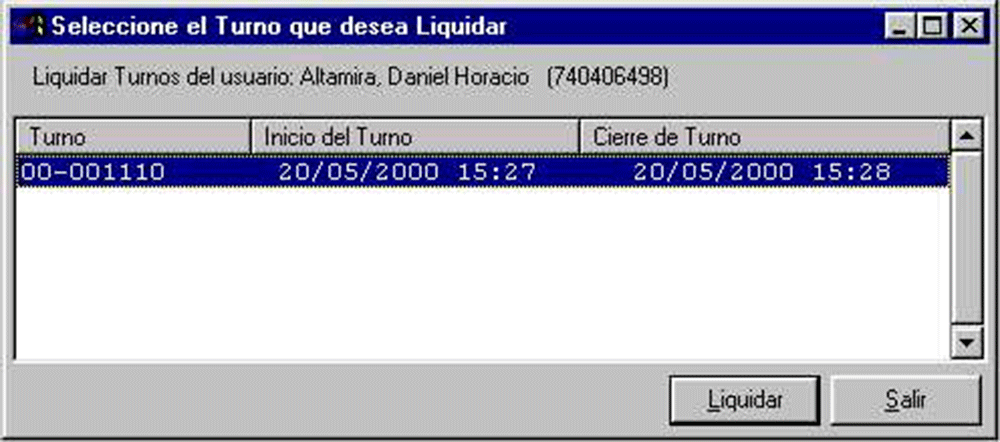

After closing the shift, the booth operator will hace to render the collected money during the shift operation.

Screen view: Closing Balance shifts type

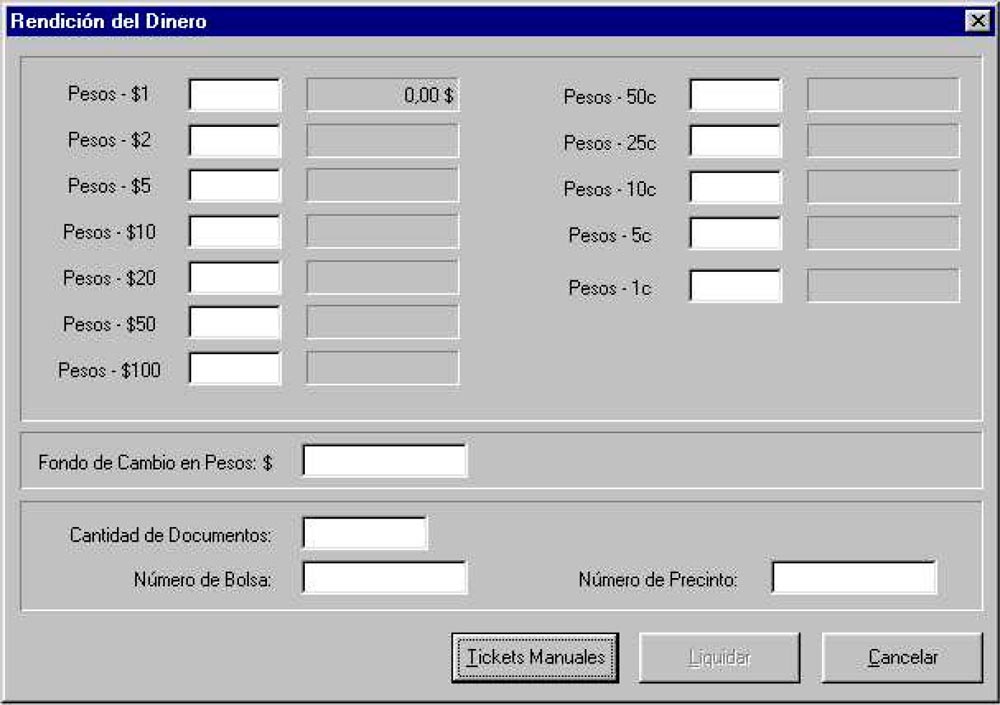

system-3toll-place5

Once closed, the shifts will be ready to be rendered to the collecting company.

system-3toll-place6

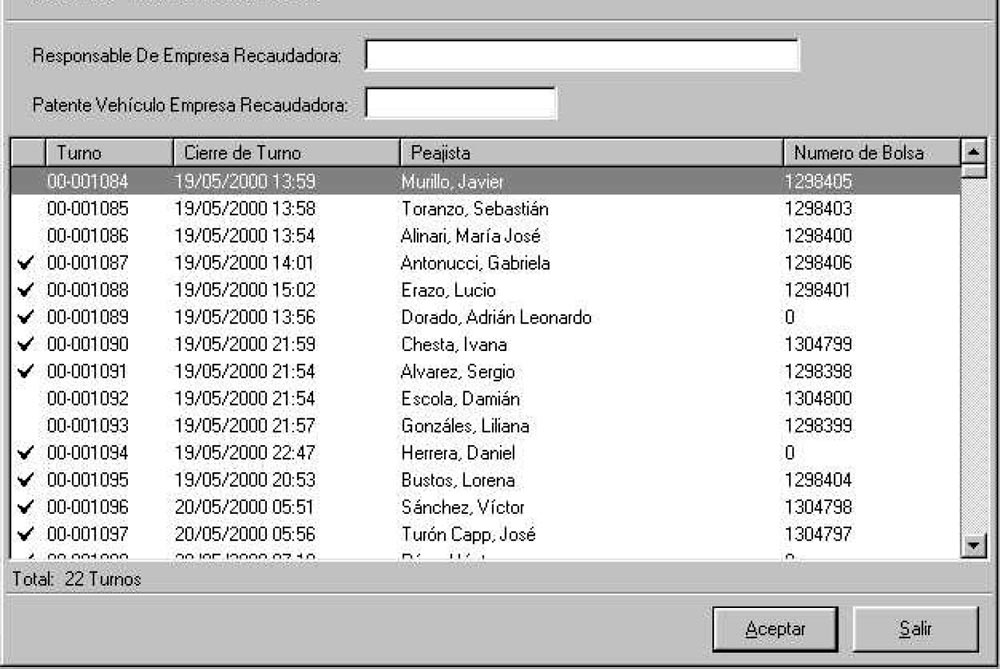

Screen view: Collection handing Type

4.2.2.1 Reports

Provisory Settlement Report

This report must be issued together with the shift Closing Balance. It must be signed by the booth operator and his supervisor. The report contains the following information:

– Toll Plaza to which the sift closed balance belongs.

– Closed balance shift number.

– Opening and closing date and time of the settlement shift.

– Number of sub-shift.

– Name of booth operator that worked in the closed balance shift.

– Bag and seal number where the money was deposited.

– Amount declared by the booth operator.

– Amount registered through the lane system.

– Difference between what the booth operator declared and what the lane system recorded.

– Amount collected through contactless cards.

– Amount collected through credit cards.

– Amount collected through tags.

– Total amount collected.

– Number of registered transits.

– Number of “free of payment” transits (detailed according to type)

– Room to perform operations.

– Booth operator’s and supervisor’s signature.

Collection delivery report

This report must be issued every time one or more collections are delivered to the Transport Company and must be signed by the collector and the supervisor in charge of it.

This report has the following information:

– Toll plaza that issues the delivery.

– Collection delivery Number.

– Issuance date and time.

– Name of the supervisor that is involved in the collection delivery.

– Name of the company and plate number of the collector vehicle responsible for transportation.

– Number of shifts delivered.

– Name of booth operators in charge of the shift delivery.

– Bag and seal numbers.

– Shift declared amounts.

– Number of bags and declared amounts delivered.

– Total amount delivered.

– Observations done.

– Collector’s and supervisor’s signature

<h5>4.2.3 Maintenance Lane Client</h5>

The Maintenance client is apparently similar to the Toll Manager client. It has a graphic representation of similar characteristics, by means of which it is possible to operate with the lane elements. However, it is not possible to perform operations related to Exploitation.

Functions

– Monitoring of a lane operation and configuration.

– Telecommands.

– Search for registered incidents.

4.2.3.1 Monitoring of a lane operation and configuration

Its basic aim is to allow the maintenance staff to check everything about lanes, specially the hardware.

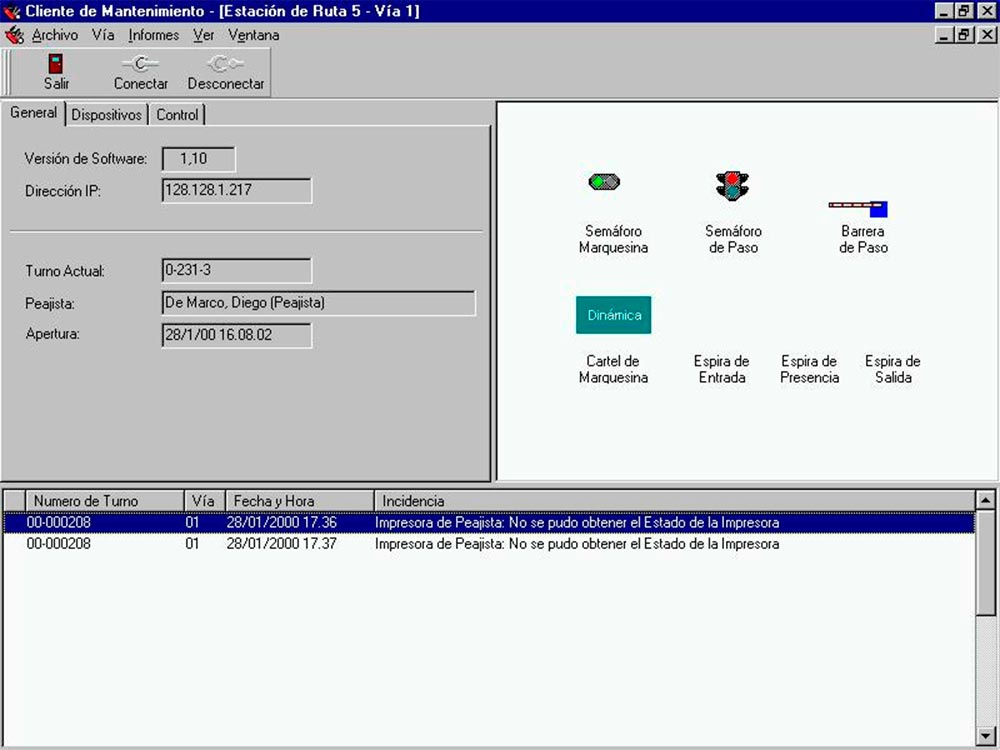

4.2.3.1.1 Lane Monitoring screen

system-3toll-place7

Information and control files
On the left hand side of the screen, there are three files for the visualization of the lane information and control.

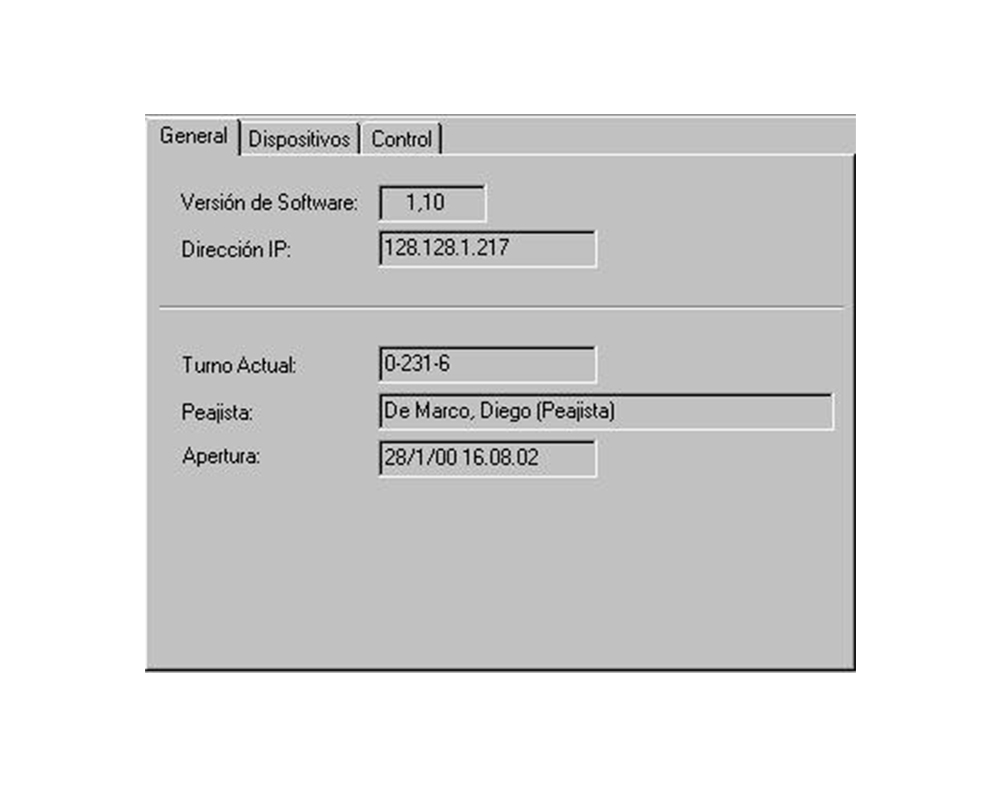

General file

system-3toll-place8

In this file you will find information about:
– The software version used in the lane.
– IP address of the lane controller.
– Code of the lane present shift (see Manual Toll Plaza Chief Client or shifts assignment).
– Toll Plaza operator’s name working in the present shift.
– Opening date and time of the present shift.

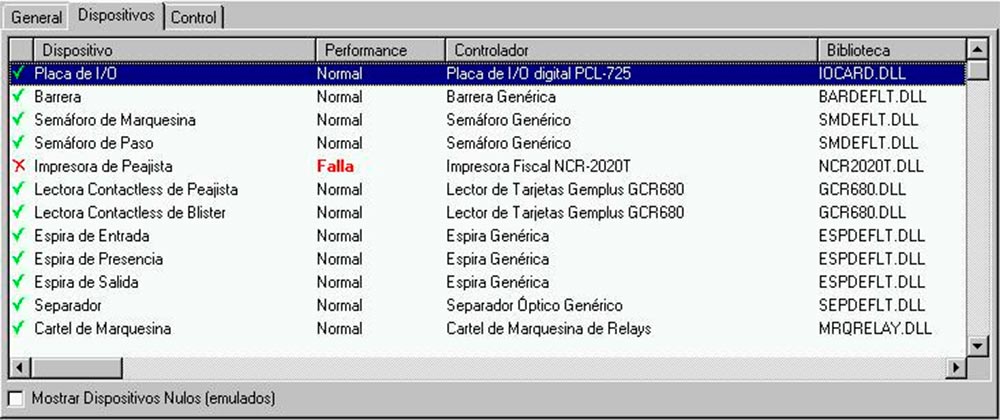

Devices’ File

system-3toll-place9

In this file you will find a list of the prevailing lane devices with the following details:
– Device: Name of the device.
– Performance: Device actual performance: normal, degraded or faulty.
– Controller: Device Controller Name.
– Library: AVI Library File Name used by the controller.

When you click on the verifying box “Show Null devices (emulated)”, all the devices that have been emulated for this lane (which in fact don’t exist) will be also listed.

Note: The lane software will always emulate all the devices that could exist in it; that is to say, if a device does not exist in the lane, this will be emulated as normal.

4.2.3.2 Telecommands

It allows sending telecommands to the lane devices so as to verify the correct operation. But if the lane is open, it is not possible to send telecommands that alter in any way, the configuration or status of any lane element.

In the control file there are three operations that can be performed:
– To reinitiate the software: It reinitiates the program that is using the selected lane.
– To reinitiate the lane hardware: It reinitiates the hardware of the selected lane. This option restores the configuration of the selected lane devices.
– To switch off the lane: It switches off the selected lane.

Control file

system-3toll-place10

4.2.3.3 Search for registered incidents

On the bottom part of the screen, there is a list that contains all the incidents occurred in a lane. There, you can see the actual shift, the lane number and the date and time in which the incident took place. An incident can take place due to the following reasons:

– The booth operator sends a message to the Toll Plaza.
– The booth operator has pressed the alarm button.
– There has been an error in the reading of a payment mode (contactless and magnetic cards, TAG)
– The payment mode has been rejected.
– The lane has turned to “on line”.
– The lane has turned to “off line”.
– There has been an error in the lane hardware.
– The lane was closed unintentionally, or because of an internal error.

Annex- Toll Plaza Level reports

The reports of this level are:

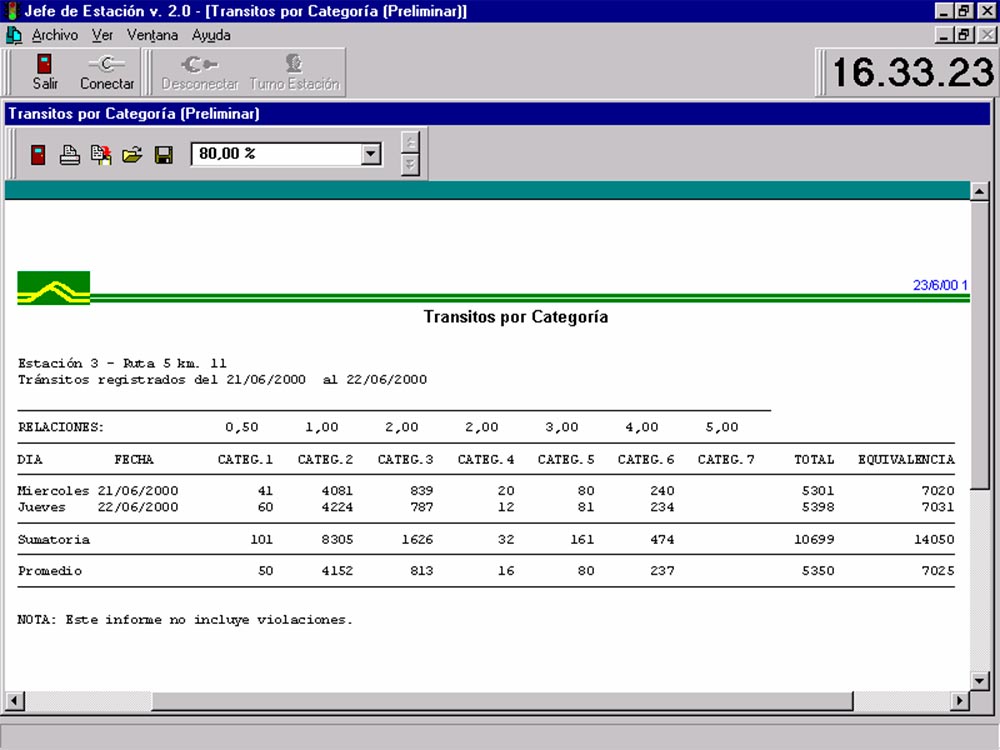

5.1 Traffic by category

This report contains the number of vehicles registered in the selected time-term, and grouped by categories.

system-3toll-place11

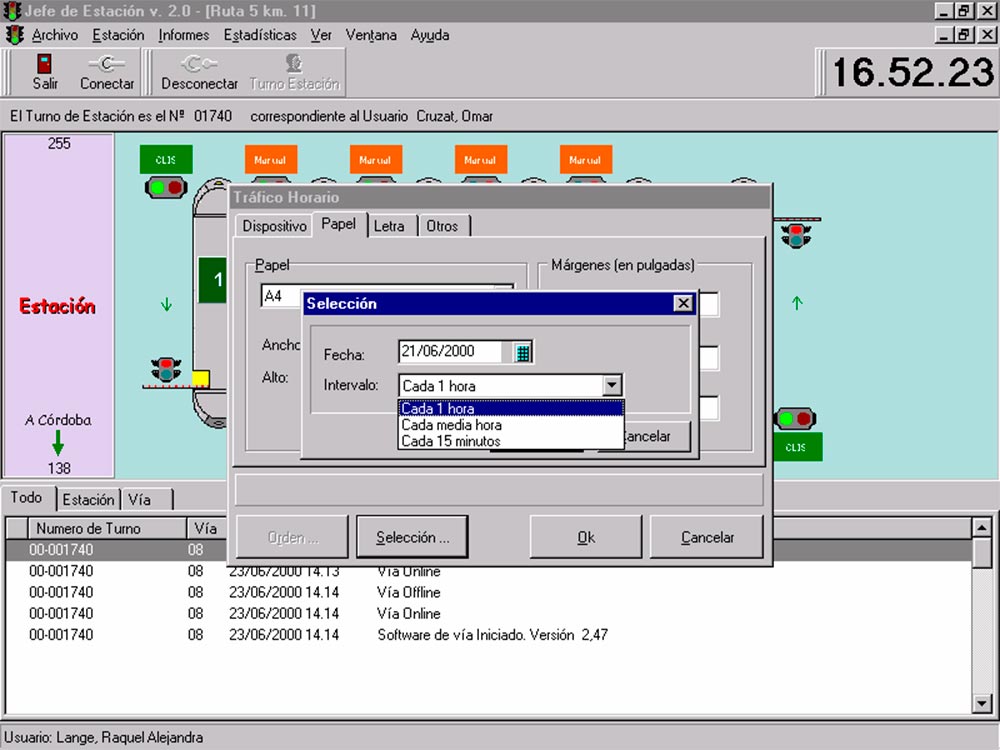

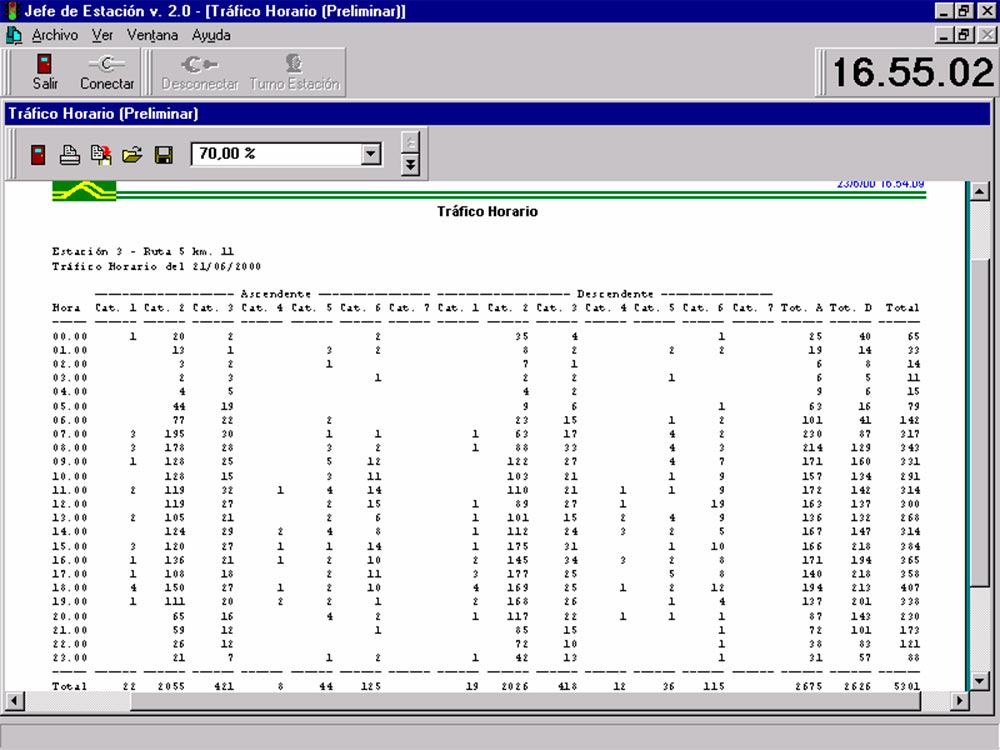

5.2 Time Table Traffic

This report contains the number of vehicles registered in a selected time term, grouped by ascendant and descendant transits.

system-3toll-place12
system-3toll-place13

In this report it is possible to get information such as:

– Present toll plaza.
– Selected date.
– Number of transits registered by category and way (ascendant and descendant) in the period of time selected.
– Total of ascendant transits registered in the period of time selected.
– Total of descendant transits registered in the period of time selected.
– Total of transits registered in the period of time selected.
– Total of transits registered by category and way.

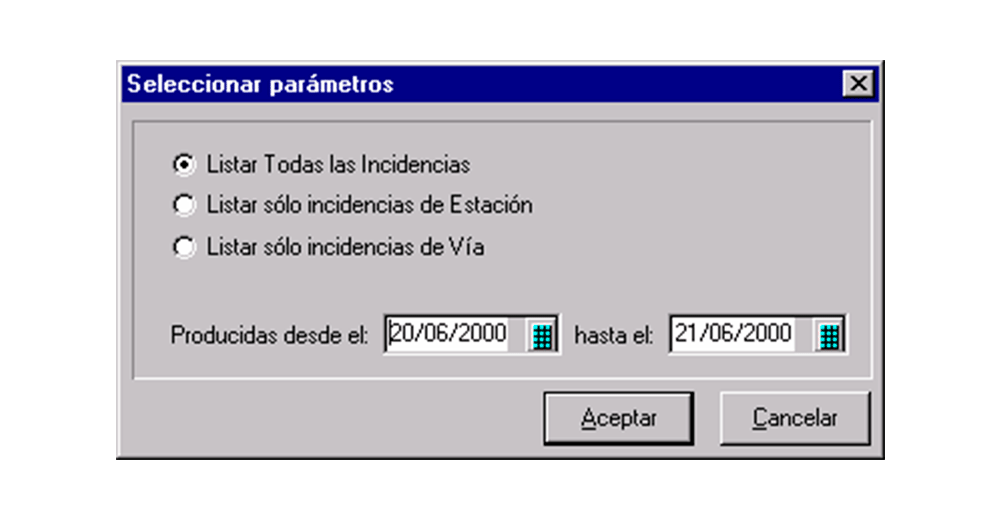

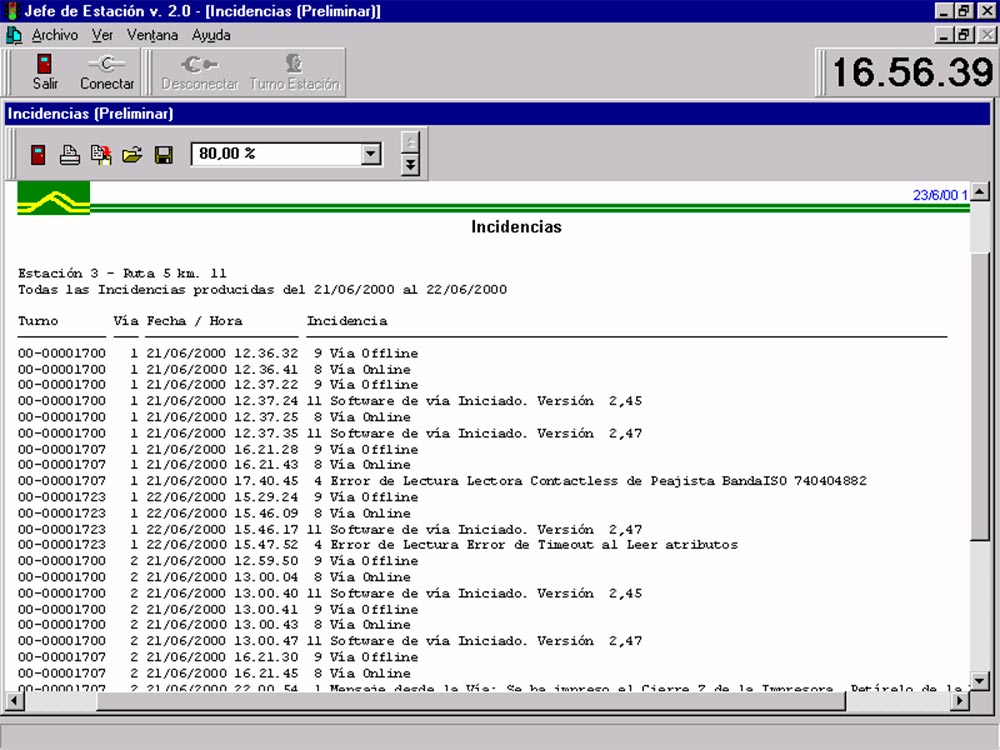

5.3 Incidents listing

This report contains all the Toll Plaza and lane incidents occurred during the selected date range.

system-3toll-place14
system-3toll-place15

In this report it is possible to get information such as:

– Present toll plaza.
– Selected time period.
– Shift during which the incident occurred.
– Number of lane where the incident occurred.
– Date an time of the incident.
– Code and description of the incident.
– Total of incidents.

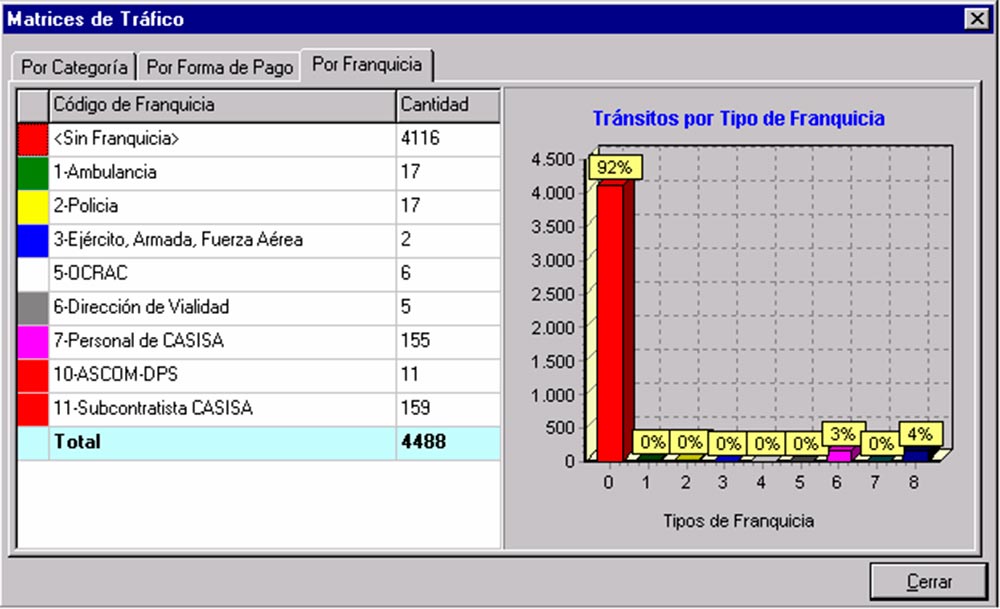

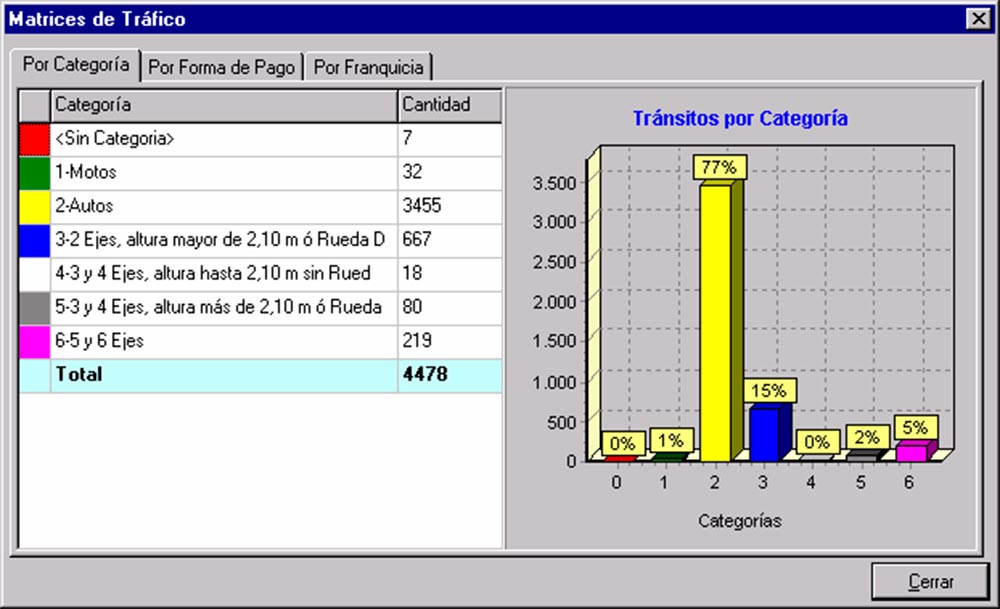

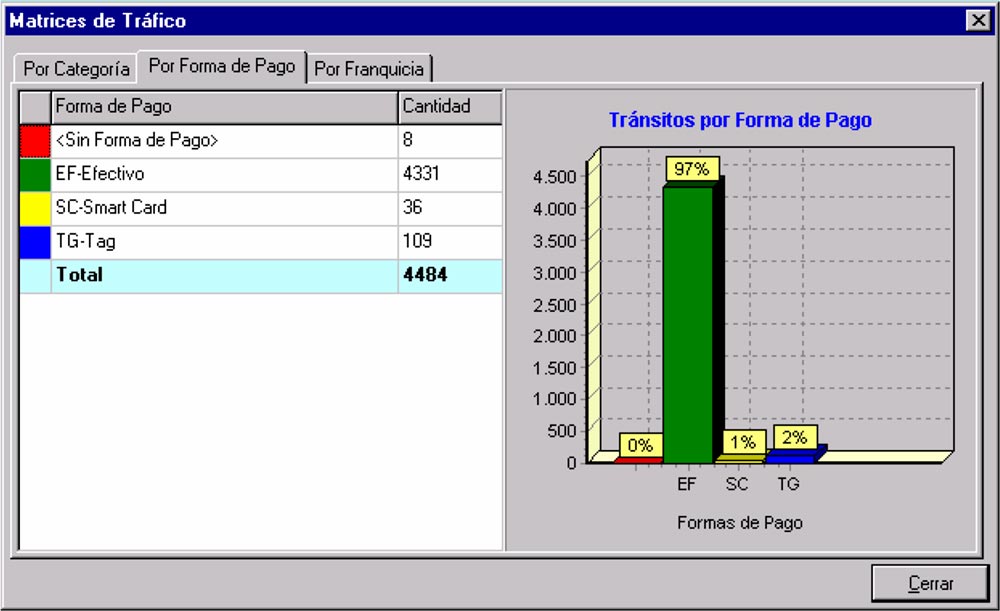

Statistics

system-3toll-place16
system-3toll-place17
system-3toll-place18
